Floating Ball Flanged

74

Size range:

1/2”- 8” (DN15-DN200)

Pressure range:

Class 300

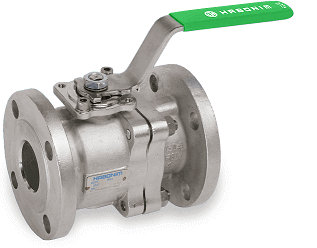

The 73/74 Series are Habonim’s line of Flanged Full Port Ball Valvess in ANSI class 150 and ANSI class 300. Ideal for conditions which require maximum pressure drop, reducing risk of clogging with solids or slurries, Habonim’s full bore valves offer tight shutoff, long service life and durability with exceptional performance in many service applications under the most severe working conditions.

  • 74

  • 74

  • 74

  • 74

Actuation



The COMPACT actuator is a quarter-turn rack & pinion pneumatic actuator that doubles the torque and cut by half the piston travel of standard pneumatic actuators.
The superior performance is achieved by Habonim’s patented four piston design, which generates torque around a centrally located piston, this translates into:
                  • Double the power for the same size actuator or Half the size for the same amount of power
                  • Much faster opening and closing time.
A full range of Mounting Kits is available, allowing optimized mounting and use of the COMPACT actuator for valve automation with Habonim’s valves and simple integration with valves that have a standard ISO-plate mounting interface.
Valve Automation Packages is offered based on Habonim’s standard and costume made valves and actuators or as costume made packages with valves, actuators and top-works per customer requests.

More info

Special use

Ammonia services ball valve (M):

Habonim’s ammonia service ball valves are suited to provide optimal protection and functionality for use in severe ammonia service applications.

Oxygen services ball valve (O):

Habonim’s ball valves for oxygen service are suited to be used with both liquid and gaseous oxygen, cleaned and assembled with required measures for a safe use in oxygen service equipment and avoid valve contamination to the media purity.

Chlorine services ball valve (K):

Habonim’s ball valves for chlorine service are designed for use with chlorine, cleaned and assembled with required measures for a safe use in chlorine service equipment and avoid valve contamination to the media purity.

More info
